Nocturne 52 cadran francaise

• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68667

• Picture

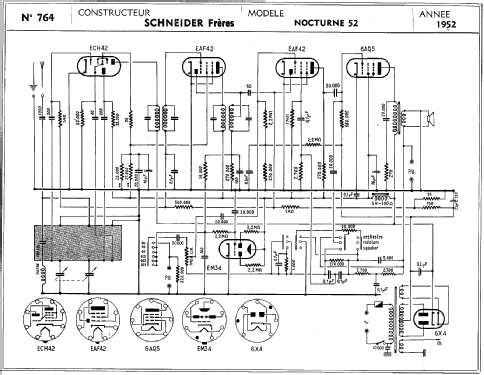

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 6AQ5 6X4 EM34

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Nocturne 52 [cadran francaise] - Schneider Frères, Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 635 x 380 x 345 mm / 25 x 15 x 13.6 inch

• Notes
• An der Oberseite befindet sich der typische Schneider-Frères-Grill aus Bakelit, unter dem der Lautsprecher liegt. Auch der Wulst unter den Knöpfen ist aus Bakelit. Short Wave: 3 bands.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 7494)
