- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 253356
Dépliant 1958
- Number of Tubes
- 17
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110/245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

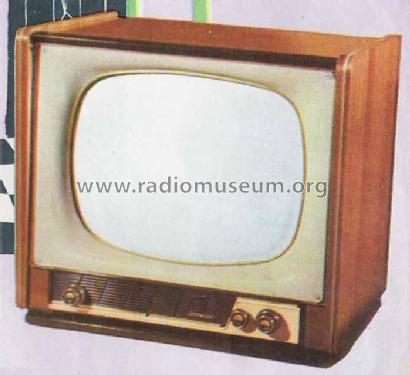

- Model: SF2259 MD - Schneider Frères, Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 606 x 605 x 570 mm / 23.9 x 23.8 x 22.4 inch
- Notes
-
16 tubes Noval, tube cathodique 54 cm angle 90° à écran suractivé. 819 lignes. Rotacteur 12 positions, multicanal moyenne distance. Commande automatique de gain, antiparasites image et son automatiques. Commande à distance avec interrupteur.
Ébénisterie bois, décors matière plastique et bronze.
54 cm 819 lines b/w TV, French standard VHF tuner.
- Net weight (2.2 lb = 1 kg)
- 44 kg / 96 lb 14.7 oz (96.916 lb)
- Mentioned in
- -- Original prospect or advert
