- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171406
Luomatic on weak signal
Luomatic with strong signal
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 457/10700 kHz; 4 AF stage(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 1.6 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org

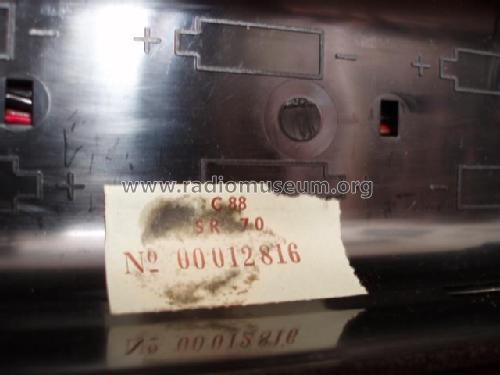

- Model: SR70 Ch= C88 - Schneider Frères, Radio-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 325 x 200 x 85 mm / 12.8 x 7.9 x 3.3 inch
- Notes
-

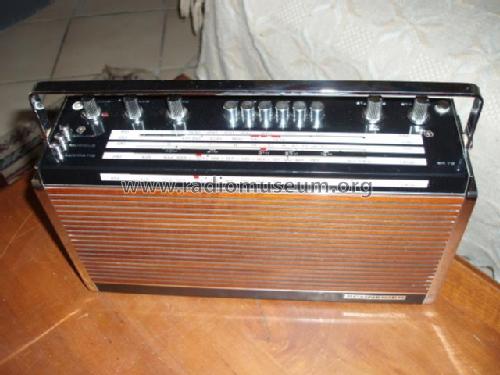

SR70 is a high range receiver "made in France", it features a very beautiful wood enclosure, two separated selections for AM and FM,
2 loudspeakers: one 12 x 19 cm 5 Ω and a 5 cm tweeter both manufactured by Princeps.
Two separated tone controls for Bass and Treble with two "Music" and "HiFi" preselections. A small lamp "Luomatic" is used for a precise tuning.Équivalent aux modèles Loewe Opta T86 et Schneider Norya C87.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Author
- Model page created by Serge Laffont. See "Data change" for further contributors.
