• Country
• Austria

• Manufacturer / Brand
• Schrack (Triotron); Wien

• Year
• 1930/1931

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 74667

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles).

• Material
• Wooden case

• from Radiomuseum.org

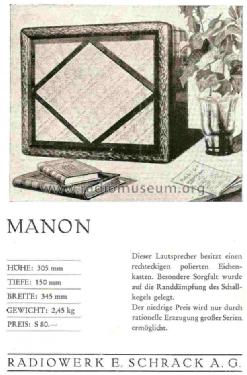

• Model: Triotron-Manon - Schrack Triotron; Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 345 x 305 x 150 mm / 13.6 x 12 x 5.9 inch

• Notes
• Gehäuse Eiche, poliert. Spezielle Randdämpfung des Schallkegels. Doppeltes Vierpol-System. Preis in Deutschland RM 45.-

• Net weight (2.2 lb = 1 kg)
• 2.450 kg / 5 lb 6.3 oz (5.396 lb)

• Price in first year of sale
• 80.00 ATS

• Source of data
• Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.

• Other Models

• Here you find 55 models, 44 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
