Silvertone 1965 Early and Late

Sears, Roebuck & Co.; Chicago (IL)

Dati

Forum

Immagini

Collezioni

Paese
USA (Stati Uniti d'America)

Produttore / Marca
Sears, Roebuck & Co.; Chicago (IL)

Anno
1935/1936

perfect model

Categoria
Radio (o sintonizzatore del dopoguerra WW2)

Radiomuseum.org ID
56078

- Brand: Silvertone

Immagini
Schemi

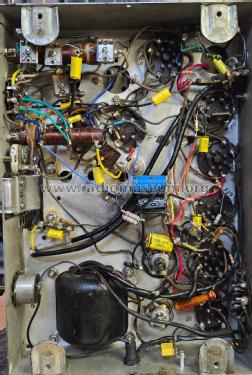

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296883) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296884) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296885) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296886) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296887) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296888) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296889) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296890) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296891) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296892) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296893) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296894) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296895) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296896) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296897) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296898) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1296899) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 622239) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 622240) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 622241) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 2651087) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (3)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 257320) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)
Ebay Nr. 260034588957 Bild bearbeitet.

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 257321) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)
Ebay Nr. 260034588957 Bild bearbeitet.

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 257322) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)
Ebay Nr. 260034588957 Bild bearbeitet.

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 257323) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)
Ebay Nr. 260034588957 Bild bearbeitet.

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 538918) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)
By courtesy of "antiqueradios.com"!

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 713284) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (2)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1015753) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (1)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 1015754) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (1)

Silvertone 1965 Early and Late ; Sears, Roebuck & Co. (ID = 2579528) Radio — Sears, Roebuck & Co. Silvertone 1965 Early and Late (1)

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

Specifiche tecniche

Numero di tubi
8

Valvole
6D6 41 6K7MG 75 6C5MG 6F6MG 6F6MG 80

Principio generale
Supereterodina (in generale); ZF/IF 175 kHz

N. di circuiti accordati
6 Circuiti Mod. Amp. (AM)

Gamme d'onda
Onde medie (OM) e 2 gamme di onde corte (2 x OC).

Tensioni di funzionamento
Alimentazione a corrente alternata (CA)

Altoparlante
AP elettrodinamico (bobina mobile e bobina di eccitazione/di campo)

Materiali
Mobile in legno

Radiomuseum.org
Modello: Silvertone 1965 Early and Late - Sears, Roebuck & Co.; Chicago

Forma
Console, con gambe d'appoggio basse (< 50%).

Annotazioni
Silvertone 1965 Early and Late: Rider's Sears page 7-13 shows the same schematic and on 7-14 alignment for models 1905, 1915, 1955 and 1965 for "Early and Late". We show also the 17 Sears original technical pages where can be found the schematic for "Original" and "Revised". That may be the difference - and: "Earlier production uses glass and the intermediate or "G" type of tube, later production uses some metal or MG tubes."
Page 7-12 shows details of the "Dual condenser drive shaft" for the models named, plus 1917, 1967, 1967A, 1918, 1968, 1918A, 1968A, 1936, 1996 and drive data for models 1945 and 1946.
See details and summaries about Sears catalogs etc.

Fonte esterna dei dati
Ernst Erb

Fonte dei dati
The Radio Collector's Directory and Price Guide 1921 - 1965

Riferimenti schemi
Rider's Perpetual, Volume 7 = 1936 and before

Bibliografia
Pre-War Consoles

Letteratura / Schemi (1)
Riders 7-12, 13, 14
