MD441

• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1971–1999

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71314

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

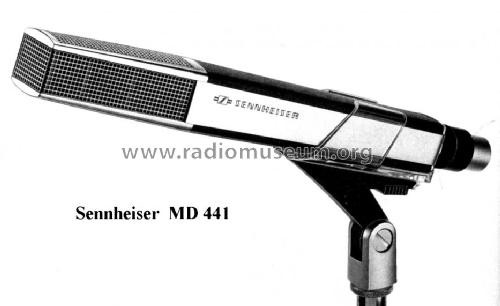

• Model: MD441 - Sennheiser Electronic Labor W;

• Dimensions (WHD)
• 36 x 33 x 257 mm / 1.4 x 1.3 x 10.1 inch

• Notes

• Dynamisches Studio-Richtmikrofon.
  Übertragungsbereich 30···20000 Hz. Richtcharakteristik Superniere; Empfindlichkeit 1,8 mV/µbar ±3 dB; Impedanz 200 Ohm. Mit vierstufigem Baßschalter.

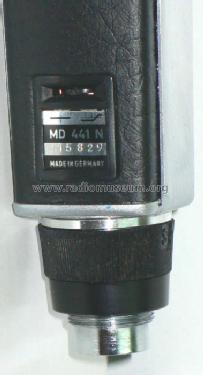

  Anschluss je nach Variante mit DIN- oder 3-pol. XLR-Stecker.

  Möglichkeit, zwischen zehn verschiedenen Reaktionskurven zu wählen.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 449.00 DM

• Source of data

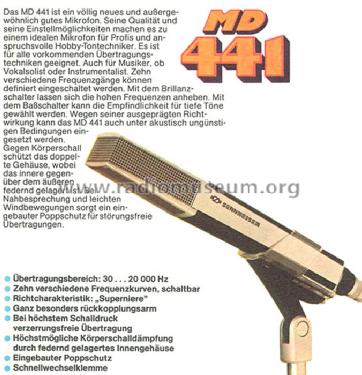

• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in

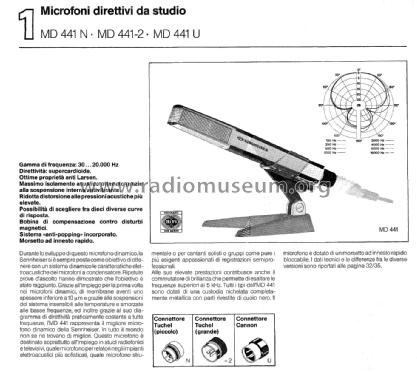

• -- Original prospect or advert (CQ Elettronica CD Verlag, nummer 4/136 April 1978)

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
