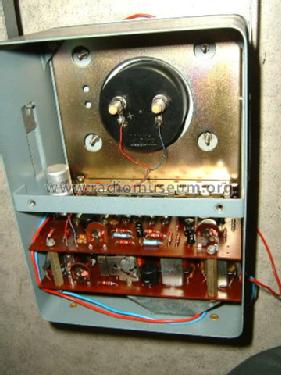

Scheinwiderstandsprüfer ZP2
Sennheiser Electronic (Labor W); Wennebostel
- Country
- Germany
- Manufacturer / Brand
- Sennheiser Electronic (Labor W); Wennebostel
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 110250
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Scheinwiderstandsprüfer ZP2 - Sennheiser Electronic Labor W;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 155 x 220 x 115 mm / 6.1 x 8.7 x 4.5 inch
- Notes
- Messfrequenzen 250 Hz, 1 kHz und 4 kHz. Baugleich mit Hartmann & Braun ZP2.
Spätere Ausführungen können mit Silizium-Transistoren (BC559) bestückt sein.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Price in first year of sale
- 175.00 USD
- Source of data
- -- Original-techn. papers.
- Mentioned in
- -- Original prospect or advert (dB Magazine March 1968)
- Author
- Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
- Other Models
-
Here you find 296 models, 281 with images and 136 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sennheiser Electronic (Labor W); Wennebostel
Collections
The model Scheinwiderstandsprüfer is part of the collections of the following members.
Forum contributions about this model: Sennheiser: Scheinwiderstandsprüfer ZP2
Threads: 1 | Posts: 3
Bei meinem Prüfgerät ist laut Anleitung ein 9V Energieblock verbaut der mit Klipse am Gerät verbunden ist.
Die Klipse haben einen Abstand von Mitte<>Mitte 35mm,also größer wie ein normaler 9V Block.
Die Klipse haben einen Durchmesser 7,25mm
Die Aufnahme für die Batterie am Batteriekasten beträgt BxTxH 65-46-max125mm
.
Frage:
Welche Batterietype würde da passen,gibt es sie noch und welche?
Für Antworten binn ich jetzt schon Dankbar
Mfg
K.H.Fischer
Karlheinz Fischer, 26.Mar.07
