• Anno
  • 1937 ?
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 203229

 Specifiche tecniche

  • Numero di tubi
  • 8
  • Valvole
  • Principio generale
  • Supereterodina (in generale)
  • Gamme d'onda
  • Onde medie (OM) e 2 gamme di onde corte (2 x OC).
  • Altoparlante
  • -altoparlante presente ma di tipo ignoto.
  • Materiali
  • Mobile in legno
  • Radiomuseum.org
  • Modello: 66-BCE - Sentinel Radio Corp., Evanston
  • Forma
  • Console di qualsiasi tipo
  • Annotazioni
  • DC-model.

 Collezioni | Musei | Letteratura

 Forum

Discussioni nel forum su questo modello: Sentinel Radio Corp.: 66-BCE

Argomenti: 1 | Articoli: 2

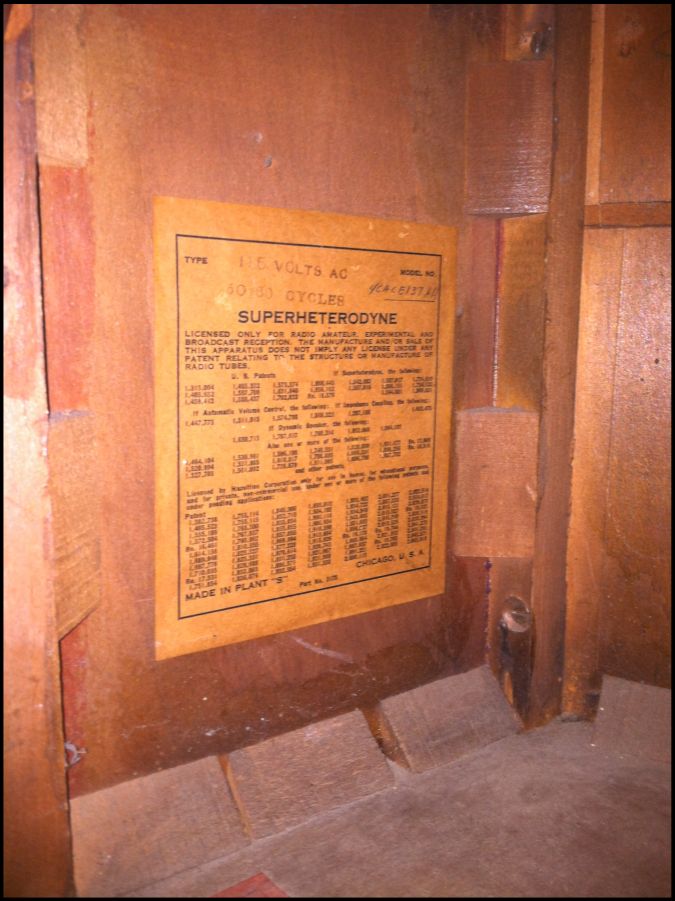

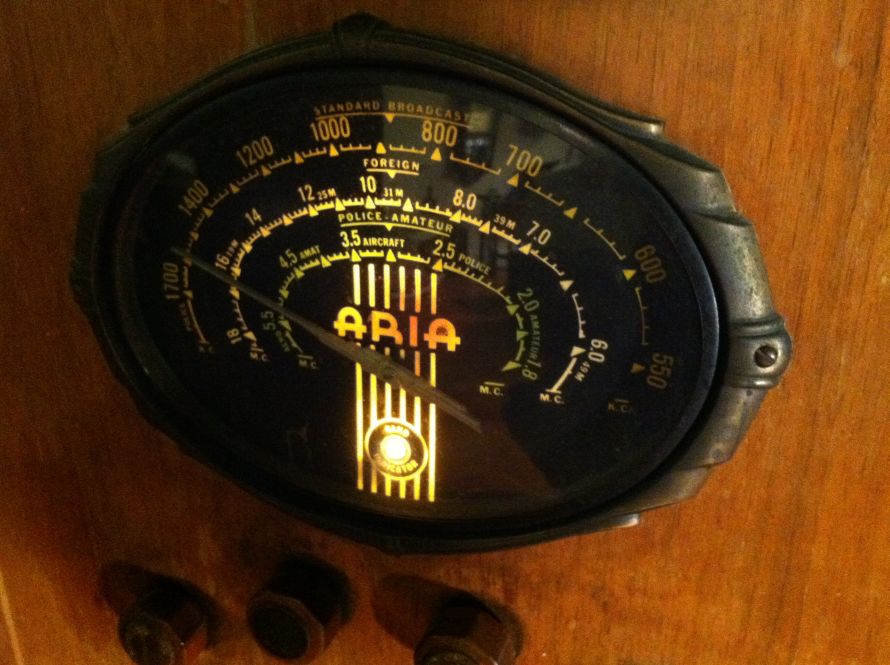

I recently found a one-owner 1938 Aria 3-band console model 4CACE137AH with the original chassis which thanks to fellow RM member Rodney Boleyn has been ID'd as chassis 46A built by Allied Radio Corp and used in at least 4 Knight radios (models A9752-55).  I've read of at least 4 companies that made radios for Aria (Detrola, Sonora, Sentinel and Wells Gardner).  Tube layout 80, 6F6, 6C5, 75, 6K7, 6A7, 6F6 with tuning eye 6G5.  Radio has what appears to be orig Jensen 12" speaker and and internal "Superior Antenna #130" made by Abbott Mfg Co of Summit NJ mounted inside cabinet.  Aria model number is very clear on factory paper label inside cabinet.  Is this worth a new model submittal to RM?  I see a few Arias under Detrola but no more, and Aria isn't listed as a separate manufacturer.  Any comments?

Allegati

Steve Dymale, 12.Nov.13
