• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 253378

• • Brand: SFER

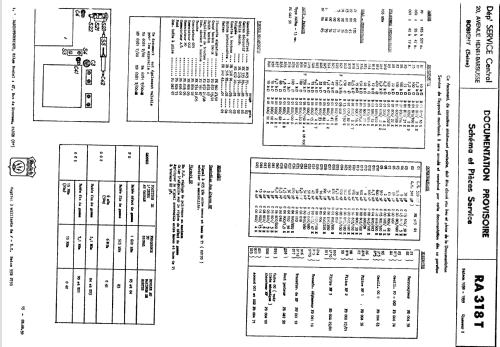

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: RA318T - Radiola marque

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 3 gammes d'ondes: PO 185 à 572 m, OC2 95 à 47 m, OC1 42 à 19 m. Clavier 4 touches. Cadre ferrocapteur, cadre OC.

  Deux coloris, rouge ou gris.

  Équivalent au Siera SA6081T (/00, /00-M) et Médiator MD6581T (/00, /00-M).

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Jean-Luc Potart. See "Data change" for further contributors.
