RA477A /01
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232861
-
- Brand: SFER
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola in my Collection. Plays Good
Radiola Manual
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: RA477A /01 - Radiola marque
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 430 x 310 x 190 mm / 16.9 x 12.2 x 7.5 inch
- Notes
-

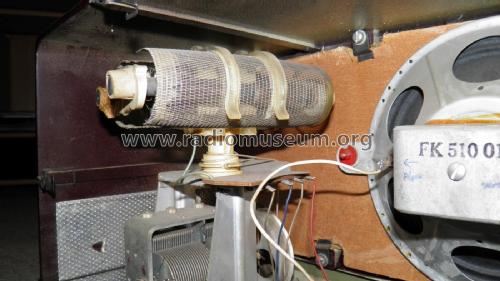

4 gammes d'ondes: GO (OL) de 1150 à 1950 m, PO (OM) de 185 à 535 m, OC de 16 à 51 m et une bande étalée sur 49 m. Cadre orientable Ferroxcube de 140 mm. Clavier 6 touches dont une préréglée sur Radio-Luxembourg. Commutateur antenne-cadre.
Coffret bakélite bordeaux avec motif décoratif.
Voir aussi modèle RA477A.
- Mentioned in
- - - Manufacturers Literature (Mode d'emploi)
- Author
- Model page created by Francesco Paviglianiti. See "Data change" for further contributors.
