- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 143825
ebay 171219399108, ismeralda7777
ebay 171219399108, ismeralda7777
ebay 171219399108, ismeralda7777

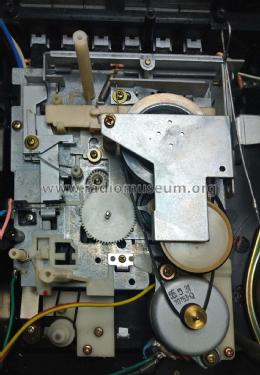

Lage der drei Antriebsriemen.

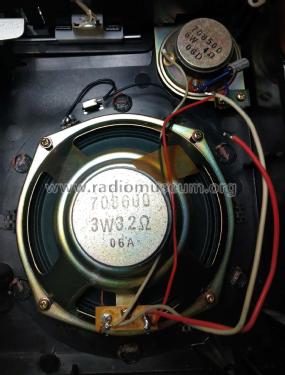

Lautsprecher, 2 Wege System.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 220 / 6 x 1,5; 9 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

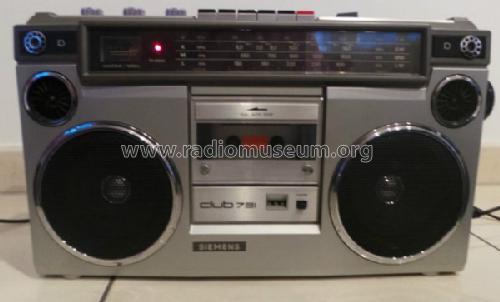

- Model: Club RM731 - Siemens & Halske, -Schuckert
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 440 x 260 x 100 mm / 17.3 x 10.2 x 3.9 inch
- Notes
-
6 ICs; Musikleistung 2 x 3 Watt.
Das Gerät hat auch einen Anschluß für ein externes 9 V - Netzteil.
Kurzwellenlupe.
- Price in first year of sale
- 398.00 DM
- Mentioned in

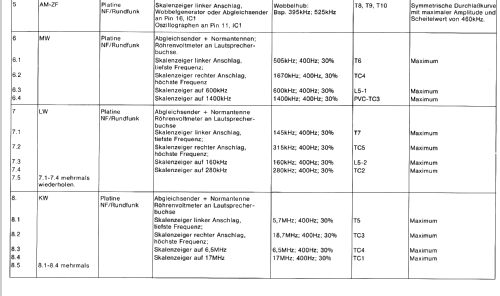

- Original Siemens Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
