• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10614

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EBF21 EBF21 EL11 EM34 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

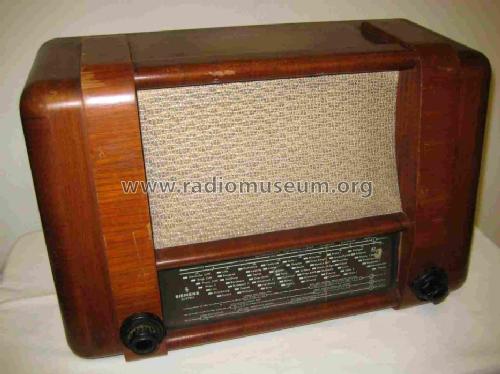

• Model: Super 560W - Siemens-Austria WSW; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 545 x 355 x 250 mm / 21.5 x 14 x 9.8 inch

• Notes
• 3 × KW: 12,9 - 21,5m; 19,7 - 32,5m; 30,9 - 51,3m.
  Variable Bandbreitenregelung mit Tonblendenregler verbunden.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 1,860.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Radiotechnik, Die, Wien (RT 42) (4910B)

• Literature/Schematics (1)
• -- Original-techn. papers.
