• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10634

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

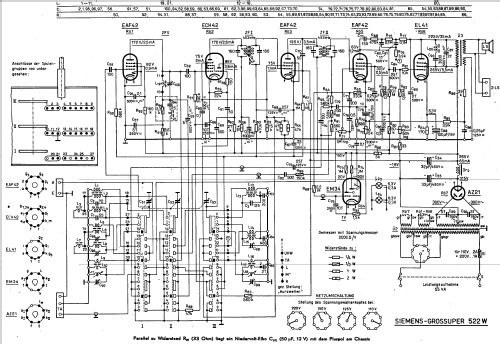

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EAF42 ECH42 EAF42 EAF42 EM34 EL41 AZ21

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Grosssuper 522W - Siemens-Austria WSW; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 380 x 240 mm / 21.7 x 15 x 9.4 inch

• Notes
• Induktive Feinabstimmung bei KW.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 2,580.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Radiotechnik, Die, Wien (RT 42) (5109B)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 202 models, 177 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
