- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1992 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 128682
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 44
- Main principle
- PLL, Phase-locked loop; ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 4 × AA 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

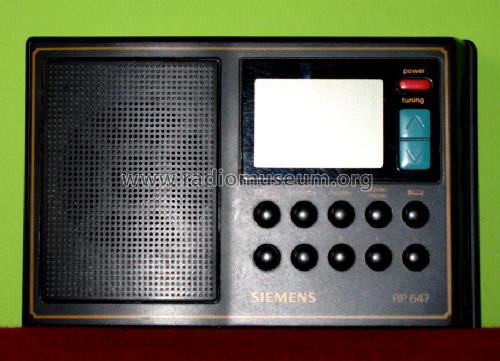

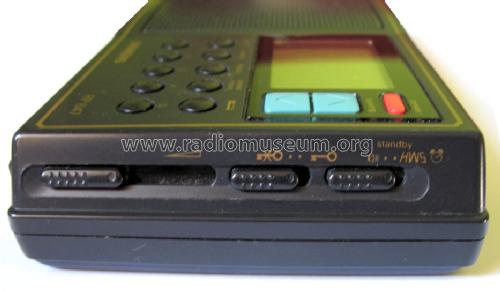

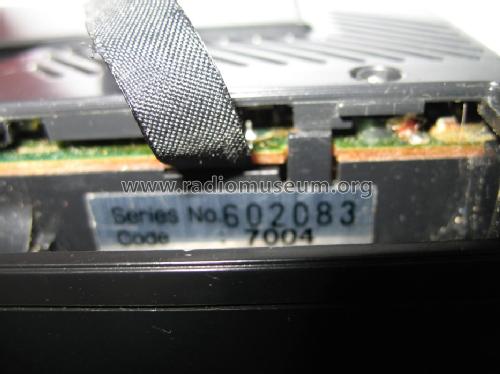

- Model: RP647 - Siemens & Halske, -Schuckert
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 170 x 112 x 38 mm / 6.7 x 4.4 x 1.5 inch
- Notes
-
Travel receiver with PLL synthesizer tuner, featuring FM Stereo on headphones (87.5 - 108 MHz), MW (531 - 1602 kHz), KW1/SW1 (3.2 - 7.3 MHz, KW2/SW2 (9.5 - 21.75 MHz), tuning channel steps of 5 kHz on SW1 and SW2, 9 kHz on MW, 50 kHz on FM, 20 station presets, clock / timer.
The identical Sangean ATS-800 and Realistic DX-370 models share the same chassis, with slight variations, like different buttom colors or RF band coverage/channel stepping for specific markets.
Technical details:
The FM band uses a dedicated TA7358AP FM front end tuner IC (IC1) that passes the 10.70 MHz IF signal to a TA7758P AM/IF IF IC (IC2) followed by a AN7415S Stereo Multiplexer Demodulator.
The MW and SW1/2 bands use a discrete RF Amplifier around a 2SK212E N-Channel JFET transistor (Q2), and then the RF signal is passed to the shared TA7758P AM Mixer/Osc and IF IC (IC2) using a frequency of 450 kHz.
The VT tuning voltage is handled by a TA8126F DC-DC Converter and associated transformer encapsulated in a metalic shielding to prevent noise interference. Two SVC201SP varicaps (D1 and D2) are used on FM RF and Oscillator sections, and two KV1236Z-3 varicaps (D3 and D4) on the AM RF and Oscillator sections.
The dual channel audio output is serverd by two AN7117 Low Power Consumption 1 W Audio Power Amplifiers (IC4 and IC5).
The radio management, clock, and PLL functions are handled by a uPD1715G Microcontroller (IC101) and several discrete transistors and three auxiliary ICs. Several firmware versions were released during the production years for Siemens, like the uPD1715G-201 and uPD1715G-214 for the G4, and the uPD1715G-633-21 for the G4II.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
