- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1969–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5190
Batteriefach und Netzteil
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- AF106 AF121 BF341 BF342 BF343 AF126 BC108 BC262 AC187 AC188 AD161 AA112 AA119 2,1-St10 2,8St10 SFD037 B30C450 ZD9.1 TAA310 AC176 AC153 BA100
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / D: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

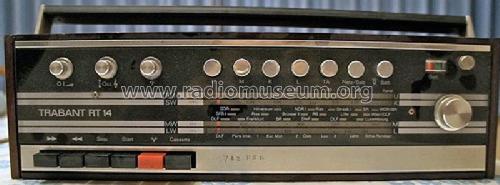

- Model: Trabant RT14 - Siemens & Halske, -Schuckert
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 364 x 218 x 106 mm / 14.3 x 8.6 x 4.2 inch
- Notes
-
ICs: 1.
KW 49m Band, getrennte Höhen-/ Tiefenreglung. Instrument für Batteriekontrolle. Aussteuerungsautomatik für Cassetten-Aufnahme.
Gehäuse: Palisander; mit 6 Schrauben total zerlegbar.Halbleiterliste: Je 1x pro Typ.
Hersteller: Blaupunkt, siehe auch Modell Marimba CR
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Source of data
- Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Handbuch RFP 1969/70 S.353 (Thiele)
