• Country
• Austria

• Manufacturer / Brand
• Silva Tonmöbel, Silva-Schneider; Salzburg

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132475

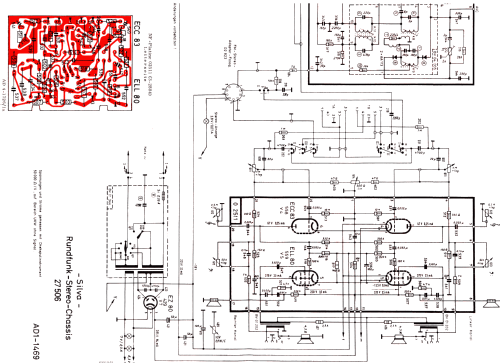

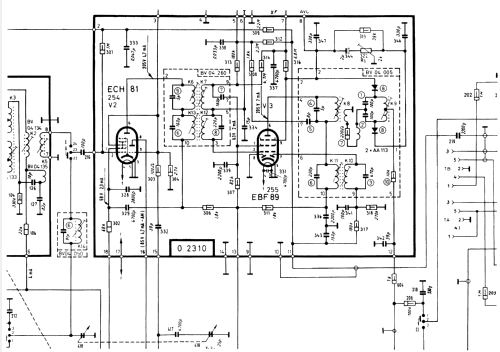

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80 EZ80

• Number of Transistors
• 5

• Semiconductors
• AF124 AF124 AF137 SFT351 SFT351 1N60 1N60 1N60 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Musiktruhe Ch= 27506 [BSR A11 Plattenspieler] - Silva Tonmöbel, Silva-

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 110 x 85 x 40 mm / 4.3 x 3.3 x 1.6 inch

• Notes

• Plattenwechsler BSR A11.

  Stereodecoder 02823 eingebaut.

• Literature/Schematics (1)

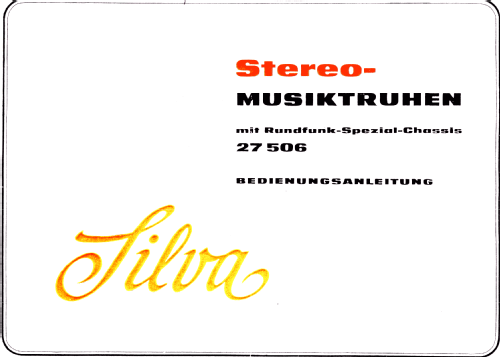

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
