- Produttore / Marca
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Anno
- 1933
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 58119
Inside
Rear
Lay-out
Dial
Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 8
- Principio generale
- Supereterodina (in generale); ZF/IF 456 kHz
- N. di circuiti accordati
- 7 Circuiti Mod. Amp. (AM)
- Gamme d'onda
- Onde medie (OM), lunghe (OL) e più di 2 gamme di onde corte (>2 x OC).
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110-127 Volt
- Altoparlante
- AP elettrodinamico (bobina mobile e bobina di eccitazione/di campo) / Ø 5 inch = 12.7 cm
- Materiali
- Mobile in legno
- Radiomuseum.org

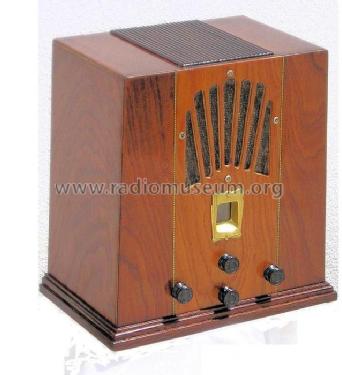

- Modello: W All Wave - Simplex Radio Co.;
- Forma
- Soprammobile verticale con decorazioni (Tombstone).
- Dimensioni (LxAxP)
- 13 x 15.2 x 9 inch / 330 x 386 x 229 mm
- Annotazioni
-
The Simplex W All Wave receiver is an 8-tube, 5-band radio with its bands denoted by different color dial lamps. It receives the following bands:
Color From To Band Orange 118 381 kHz Long wave Red 528 1532 kHz Broadcast Blue 1490 4380 kHz Shortwave 1 Green 3620 11840 kHz Shortwave 2 White 7250 23100 kHz Shortwave 3 The following radios were manufactured by Simplex and are electrically identical to the Simplex W All Wave:
- Peso netto
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Fonte esterna dei dati
- Ernst Erb
- Fonte dei dati
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Riferimenti schemi
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Altri modelli
-
In questo link sono elencati 178 modelli, di cui 91 con immagini e 64 con schemi.
Elenco delle radio e altri apparecchi della Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
Discussioni nel forum su questo modello: Simplex Radio Co.;: W All Wave
Argomenti: 3 | Articoli: 34
Dear Radiofriends,
On 1st of Feb 2005 I have written that I would rebuild this radio. I just began to do it.
I'm working on a new cabinet. That’s how it looks by now.
.jpg)
I’m also working at same time on the chassis circuit. Then I’ve notice that a push-pull transformer is missing.
.PNG)
I believe that someone knowledgable in Rmorg, reading data from this schematic, can help me with some hint. Do you ?
Thank you in advance.
Mario Coelho
The complete schematic is in Nostalgia Air.
Mario Coelho, 02.May.08
Estimados amigos dos rádios,
Em 1 de Fevereiro de 2005 eu escrevi que iria reconstruir este rádio. Começei agora.
Estou a trabalhar numa nova caixa. É este o aspecto que apresenta , por agora.
Também estou a trabalhar ao mesmo tempo no chassis. Então reparei que faltava um transformador de push-pull .
Não consigo saber as características dele.
Eu acredito que alguém conhecedor ,no Rmorg, observando este esquema, possa me ajudar com alguma dica. Dão uma ajuda?
Agradeço antecipadamente.
Mario Coelho
O esquema completo está no Nostalgia Air.
Mario Coelho, 02.May.08
Dear Radio Friends

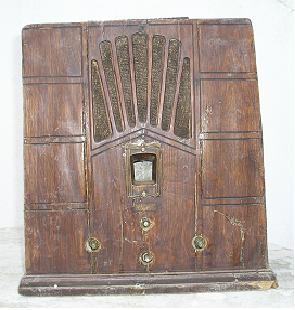

I have here a "piece of junk". I think it is a Simplex Model W All Waves.
It seems it had been underwater. Perhaps it had crossed the ocean by swimming :-) .
If it is a Simplex, I will try to restore it. It will be "brand new" again, I promise.
Its box is look like other Simplex models, though it is shorter and it has a different design, I must say.
At the top there is an equal wrinkle piece (not visible in my picture). See:
http://antiqueradios.com/albums/Simplex/Simp_P_Delux.sized.jpg
http://www.plasticradios.com/simplexrest.html
Why do I think it is a Simplex model W All waves?
It has:

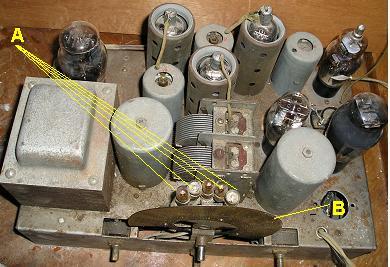

A- 5 colored bulbs to indicate B - 5 band scales transparent dial
But if it may be not a Simplex W ......
It has:
- 7 tubes instead of 8 (as we can read in Nostalgia Air Simplex schematic Page 5-1)....
- quite different escutcheon ? .....
I hope you can help me in this task. Now, fortunately some friends from USA are in Rmorg. I'm sure you can help.
Thank you in advance
Mário Coelho
Mario Coelho, 26.Jan.05
