• Country
• France

• Manufacturer / Brand
• SIR (S.I.R.) Société Industrielle Radioélectrique; Paris, Asnières

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165948

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EBF2 EL3N EM4 1883

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

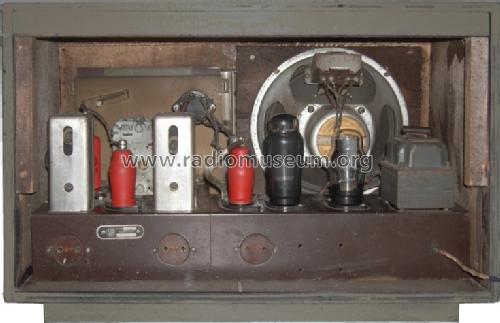

• from Radiomuseum.org
• Model: ALT - SIR S.I.R. Société

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 330 x 270 mm / 20.3 x 13 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 10.4 kg / 22 lb 14.5 oz (22.907 lb)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref. 13613 (comme 4LT))

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
