Fantom SB4973 Ser. 1
Skantic Radio AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Skantic Radio AB, Stockholm
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330023
-
- alternative name: Skandinaviska Radio AB
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 6 x 1,5 / DC 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

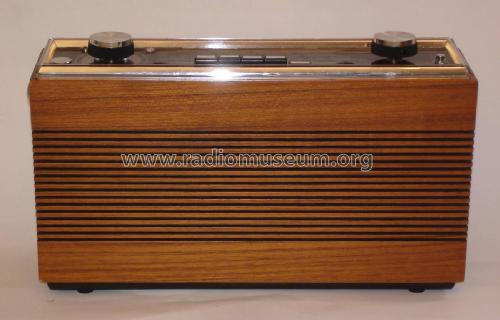

- Model: Fantom SB4973 Ser. 1 - Skantic Radio AB, Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 162 x 77 mm / 11 x 6.4 x 3 inch
- Notes
-

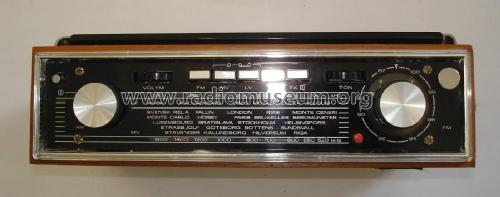

Getrennte Skalen für AM und FM. AM an der oberseite eine Linearskala, FM an der Frontseite eine Rundskala mit der Möglichkeit 3 Sender mechanisch zu speichern.
- Net weight (2.2 lb = 1 kg)
- 1.670 kg / 3 lb 10.9 oz (3.678 lb)
- Author
- Model page created by Hartmut Völler. See "Data change" for further contributors.
