• Country
• Sweden

• Manufacturer / Brand
• Skantic Radio AB, Stockholm

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278469

• • alternative name: Skandinaviska Radio AB

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC82 EM84 EL84

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

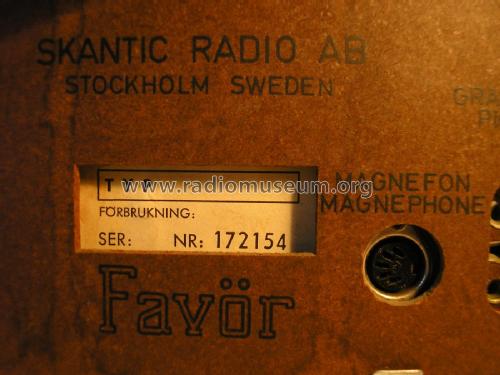

• Model: Favör 6301W [Ser 3] - Skantic Radio AB, Stockholm

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 437 x 208 x 206 mm / 17.2 x 8.2 x 8.1 inch

• Notes

• The chassis 6101W (and minor revision 6301W) are also used in these models:

  • Skantic Vocalist S3183V
  • Luxor Motala Tenor 4192W
  • Luxor Helsinki Tenor 4192W
  • Luxor Motala Virtuos 4394W
  • Luxor Helsinki Virtuos 4394W

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
