LM-333S Ch= M 33
Skantic Radio AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Skantic Radio AB, Stockholm
- Year
- 1969 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 341204
-
- alternative name: Skandinaviska Radio AB

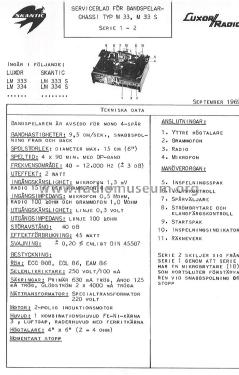

Manufacturer documentation
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: LM-333S Ch= M 33 - Skantic Radio AB, Stockholm
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 340 x 270 x 155 mm / 13.4 x 10.6 x 6.1 inch
- Notes
-
Skantic LM-333S is a 4-track, single speed (9.5 cm/s) tape recorder.
- max. reel diameter 15 cm
- inputs for microphone, radio, record player and line
- frequency response 40 - 12000 Hz ±3 dB
- elliptical loudspeaker 4" x 6", 2 WSame as Luxor LM-333
- Author
- Model page created by Serban Mihai Caloianu. See "Data change" for further contributors.
