- Country
- France
- Manufacturer / Brand
- Socradel, Société Française de Constructions Radio-Électriques; Paris, Courbevoie, Rueil-Malmaison
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331410
Image frontal
Vue arriere interieur
detail du dial

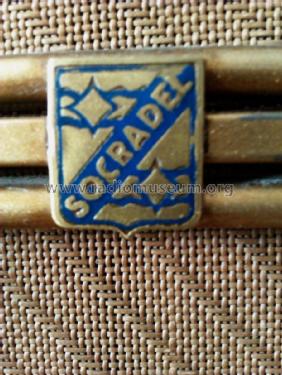

Plaque firme frontal
Vue du chassis et haut parleur
Vue zenithal arriere du chasis
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 1 - Socradel, Société Française de
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 260 x 180 x 115 mm / 10.2 x 7.1 x 4.5 inch
- Author
- Model page created by Victor Boj Cabistañ. See "Data change" for further contributors.
