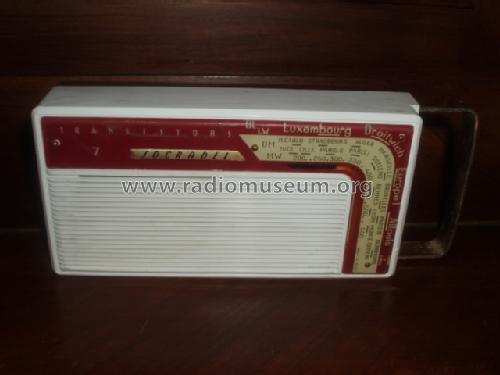

Minor Metropole Transistors 7
Socradel, Société Française de Constructions Radio-Électriques; Paris, Courbevoie, Rueil-Malmaison
- Country
- France
- Manufacturer / Brand
- Socradel, Société Française de Constructions Radio-Électriques; Paris, Courbevoie, Rueil-Malmaison
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192482
publicité issue d'un magazine d'époque 1961
Avec housse simili cuir.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Minor Metropole Transistors 7 - Socradel, Société Française de
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 107 x 58 mm / 8.3 x 4.2 x 2.3 inch
- Notes
-
7 transistors + 1 diode germanium en detection. Antenne ferrite de 15 cm. Clavier 3 touches : PO, Antenne voiture, GO.
Face avant blanche et dos de couleur rouge bordeaux.
Dimensions avec housse amovible: 220 x 115 x 65 mms.
Équivalent au Radio-LL Séduction 80 Auto.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Price in first year of sale
- 235.00 FRF
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
