• Country
• France

• Manufacturer / Brand
• Sonaphone; Paris

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325149

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL90 EM34 unknown_rectifier

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

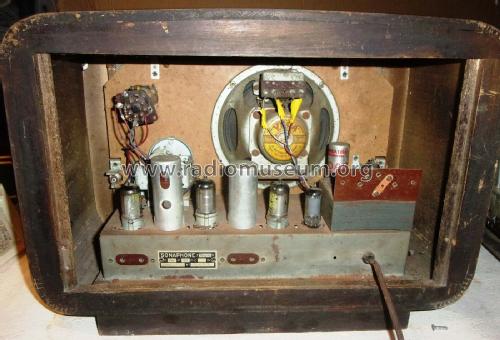

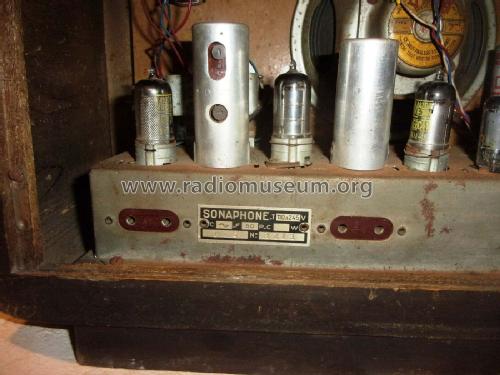

• Model: Prélude P6 [lampes rimlock] - Sonaphone; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 310 x 210 mm / 17.3 x 12.2 x 8.3 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée (BE).

• Other Models

• Here you find 48 models, 40 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
