Plein Soleil
Sonolor; Paris, La Courneuve
- Country
- France
- Manufacturer / Brand
- Sonolor; Paris, La Courneuve
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347448
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Valves / Tubes
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Plein Soleil - Sonolor; Paris, La Courneuve
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 200 x 85 mm / 11.8 x 7.9 x 3.3 inch
- Notes
-

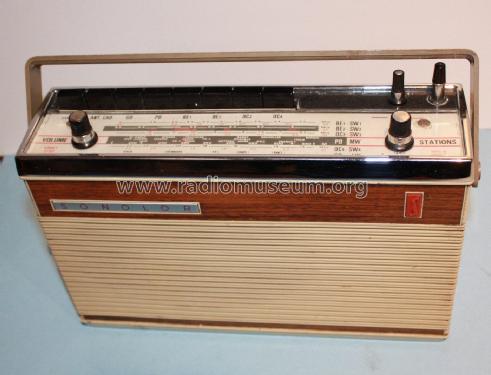

Alimentation 9 volts par 2 piles plates de 4.5 volts, 6 gammes d'ondes: GO, PO + 4 OC. Antenne télescopique sur OC. Haut-parleur SIARE elliptique 13 X19 cms 12 Ohms, clavier 8 touches dont une pour l'éclairage du cadran, boitier plastique gainé brun, prises Antenne voiture + HP ou écouteur. Controle de tonalité par potentiomètre.

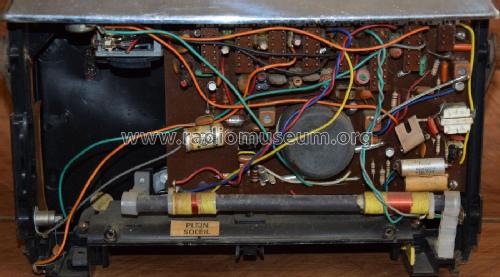

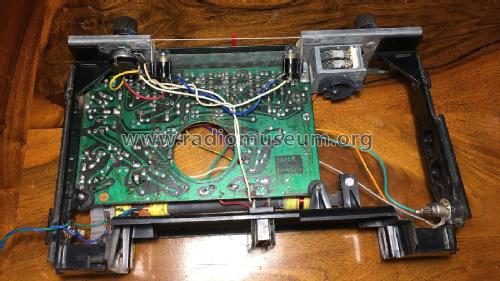

Chassis identique au Visseaux Pic-nic mais boitier différent.
- Author
- Model page created by Vincent Baccialone. See "Data change" for further contributors.
