• Country
• France

• Manufacturer / Brand
• Sonolor; Paris, La Courneuve

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173470

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Sénateur - Sonolor; Paris, La Courneuve

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 200 x 85 mm / 12.2 x 7.9 x 3.3 inch

• Notes

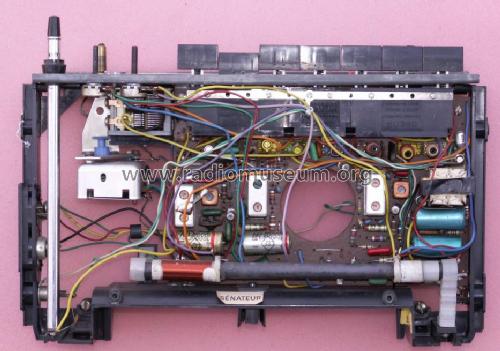

• "Sénateur" is a high range model from Sonolor, predecessor of the "Escapade". 9 Germanium (SFT series) are used. The audio amplifier delivers 1 watt before clipping in a 12x19 cm Siare loudspeaker with separated bass and treble controls. The receiver has a good FM and AM sensitivity and a very nice sound. It has a DIN socket for recording and connectors for external power supply, loudspeaker and auto antenna.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Serge Laffont. See "Data change" for further contributors.
