AF6 2e série
Sonora-Radio; Paris, Puteaux
- Country
- France
- Manufacturer / Brand
- Sonora-Radio; Paris, Puteaux
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100745

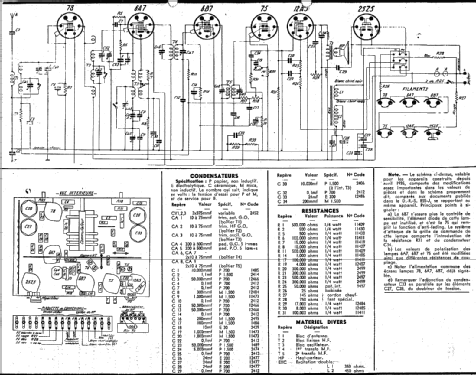

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 135 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 0.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AF6 [2e série] - Sonora-Radio; Paris, Puteaux
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 360 x 470 x 270 mm / 14.2 x 18.5 x 10.6 inch
- Notes
- Dial lamp: 2x 110V/0,12A
- Price in first year of sale
- 1,650.00 FRF
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
