• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130717

• Number of Tubes
• 6

• Valves / Tubes
• 6AV6 6BE6 6BA6 6AQ5 EM34 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

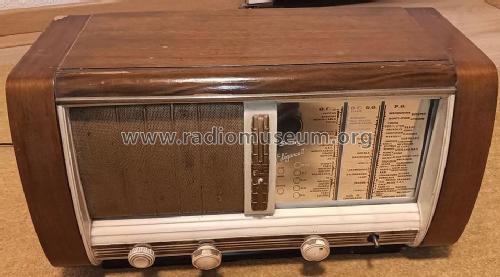

• Model: Élégance II [avec EM34] - Sonora-Radio; Paris, Puteaux

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 285 x 240 mm / 20.9 x 11.2 x 9.4 inch

• Notes

• Existe aussi en version avec oeil magique 6AF7.

• Author
• Model page created by Jacky Parmentier. See "Data change" for further contributors.

• Other Models

• Here you find 222 models, 172 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sonora-Radio; Paris, Puteaux
