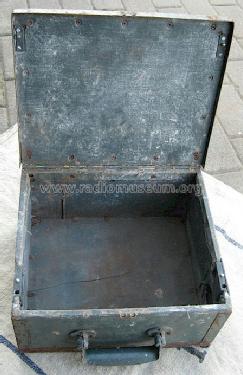

Émetteur-Récepteur ER-40 (military)
Sonora-Radio; Paris, Puteaux
- Country
- France
- Manufacturer / Brand
- Sonora-Radio; Paris, Puteaux
- Year
- 1935 ??
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 83742
- Number of Tubes
- 3
- Valves / Tubes
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Émetteur-Récepteur ER-40 - Sonora-Radio; Paris, Puteaux
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 245 x 240 x 140 mm / 9.6 x 9.4 x 5.5 inch
- Notes
- Funkgerät der französischen Infanterie; Unter diesem Typ sind 2 Gerätearten mit Unterschiedlichen Gewicht, Reichweite und Frequenzbereich bekannt, Diese: Reichweite 800m, Sprachkommunikation; Bereich: 4,8-5,8m; E.R. bedeutet Emetteur-Récepteur (Transmitter-Receiver) 80cm Teleskopantenne am Funkgerät montiert, Mit Stromversorgung etwa 10kg;
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
