• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109607

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH3 EF9 EBF2 6V6 EM4 5Y3GB

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

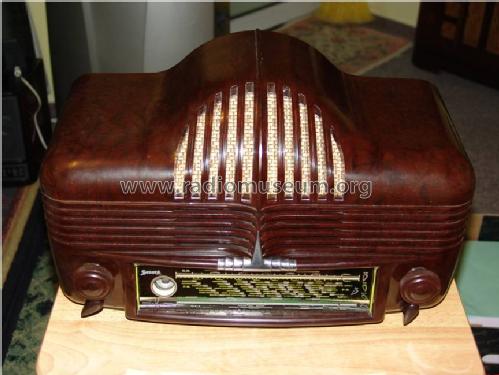

• Model: Excellence 302 - Sonora-Radio; Paris, Puteaux

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 290 x 240 mm / 18.1 x 11.4 x 9.4 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Michael John. See "Data change" for further contributors.
