• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68674

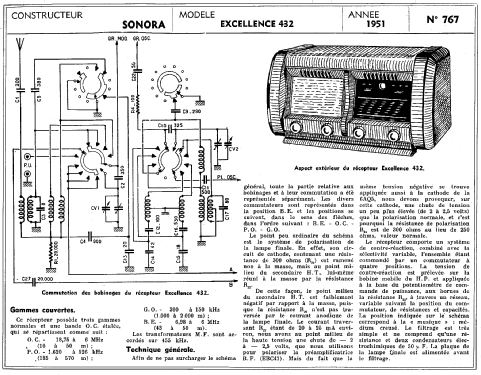

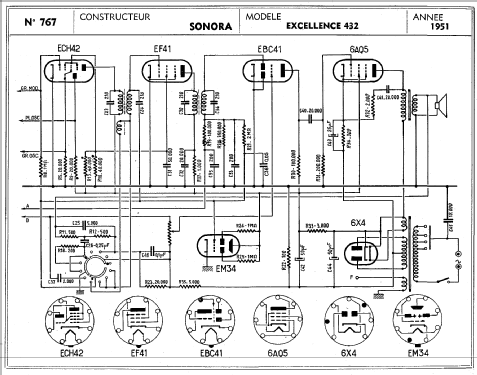

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 6AQ5 6X4 EM34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Excellence 432 - Sonora-Radio; Paris, Puteaux

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 320 x 280 mm / 25.2 x 12.6 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 11.9 kg / 26 lb 3.4 oz (26.211 lb)

• External source of data
• Serge Laffont/Martin Renoth
