• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134683

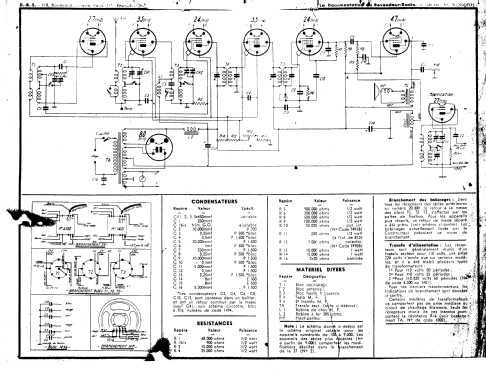

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 35 27 24 35 24 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 135 kHz; Anode bend detection

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 or 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Power out
• 2.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

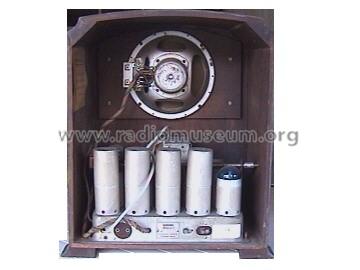

• Model: Super 7 F7 - Sonora-Radio; Paris, Puteaux

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 390 x 480 x 280 mm / 15.4 x 18.9 x 11 inch

• Notes

• 2 gammes d'ondes : PO de 175, 185, 210 ou 200 m à 550 ou 600 m (suivant les séries), et GO de 1000 à 2000 m.

  Il existe des modèles pour secteur 110 volts 50 périodes, pour 110 volts 25 périodes et comme modèle spécial pour secteur 110 - 220 volts. Lampe cadran 2.5 V / 0.3 A (nombre : 1 ou 2).

• Price in first year of sale
• 1,750.00 FRF

• Circuit diagram reference

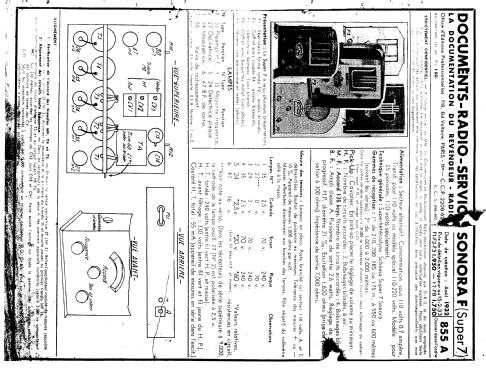

• La Documentation du Revendeur - Radio

• Mentioned in
• Dépliant ARC-Radio, Nouveautés 1934

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Philippe Ragot. See "Data change" for further contributors.

• Other Models

• Here you find 222 models, 172 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sonora-Radio; Paris, Puteaux
