• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276739

• Number of Tubes
• 7

• Valves / Tubes
• 35 27 24 35 24 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 135 kHz; Anode bend detection

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 or 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

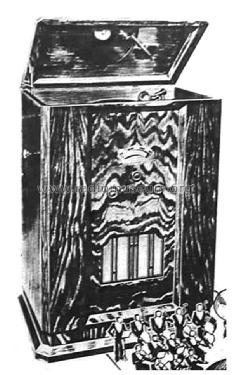

• Model: Radio-Phono Combiné RP7 [sans changeur] - Sonora-Radio; Paris, Puteaux

• Shape
• Console with any shape - in general

• Notes

• Phonographe Sonora, équipé de châssis série F (voir par exemple modèle F7).

• Price in first year of sale
• 3,300.00 FRF

• Mentioned in
• L'Illustration (Nov. 1933)

• Literature/Schematics (1)
• -- Original prospect or advert (L'Intransigeant, 14.12.1933)

• Literature/Schematics (2)
• Dépliant ARC-Radio, Nouveautés 1934

• Other Models

• Here you find 222 models, 172 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
