SR8 avec 6A7
Sonora-Radio; Paris, Puteaux
- Country
- France
- Manufacturer / Brand
- Sonora-Radio; Paris, Puteaux
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100675
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240; Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch
- Power out
- 2.6 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: SR8 [avec 6A7] - Sonora-Radio; Paris, Puteaux
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 300 x 450 mm / 17.3 x 11.8 x 17.7 inch
- Notes
-
Dial lamps: 3x 7V/0,3A
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 995.00 FRF

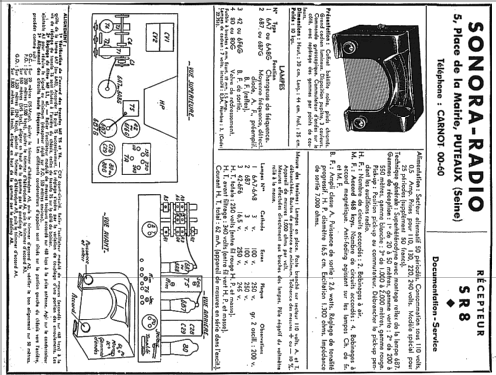

- Circuit diagram reference
- La Documentation du Revendeur - Radio
