• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111360

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF127 BF121 BF121 AC125 BC170 AC188 AC187 unknown_diode AA143 unknown_diode

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

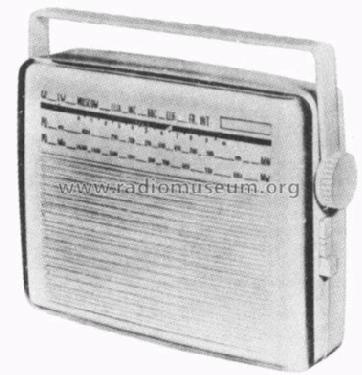

• Model: T 240 - Sonora-Radio; Paris, Puteaux

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 218 x 160 x 61 mm / 8.6 x 6.3 x 2.4 inch

• Notes

• Prise antenne extérieure, prise HP supplémentaire ou écouteur.

  Identique au Continental Edison T240.

• Literature/Schematics (1)
• Schémathèque Sorokine (SRK) (No. 1134)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
