• Country
• France

• Manufacturer / Brand
• Sonora-Radio; Paris, Puteaux

• Year
• 1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111379

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• from Radiomuseum.org
• Model: TV22 - Sonora-Radio; Paris, Puteaux

• Notes
• Picture tube 43 cm.

• Literature/Schematics (1)

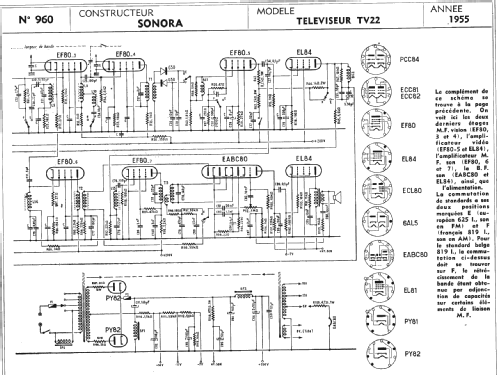

• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 222 models, 172 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
