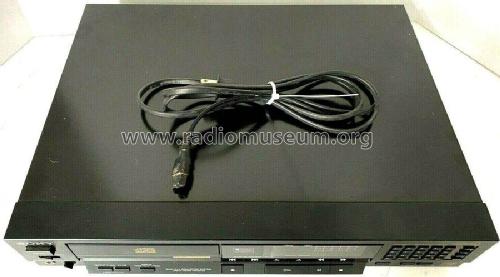

Compact Disc Player CDP-910

Sony Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1987
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 315880

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 120 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Compact Disc Player CDP-910 - Sony Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 430 x 100 x 335 mm / 16.9 x 3.9 x 13.2 inch
  • Anotaciones

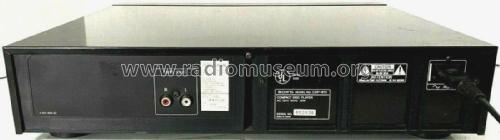

  • A stereo hi-fi compact disc player with remote control (RM-D350A). With Direct Selection (Tracks 1-20), Program Play (up to 20 selected tracks), variety of playing modes (Disc, Program, Shuffle and Repeat) and a large and easy to read window display (elapsed and remaining playing time of track, disc or remaining program).  RCA Line Out sockets, jack for headphones with volume control.

    Specification
    System Compact disc digital audio system
    Disc Compact Disc
    Laser (KSS-151A) Semiconductor laser (λ = 780 nm)
    Laser output Max. 44.6 µW
    Spindle speed 200 rpm to 500 rpm (CLV)
    Scan velocity 1.2-1.4 m/sec.
    Error correction Sony Super Strategy Cross Interleave Reed Solomon Code
    Number of channels 2
    D/A conversion 16-bit linear
    Frequency response 2 - 20,000Hz ±0.5 dB
    Signal-to-noise ratio More than 102 dB
    Dynamic range More than 95 dB
    Harmonic distortion Less than 0.003% (1 kHz)
    Channel separation More than 98 dB (1 kHz)
    Wow and flutter Below measurable limit
    Output jacks
    Line Out
      Output Level
      Load Impedance    		 2V (50kΩ)
    More than  10kΩ
    Headphones
      Output Level
      Load Impedance    		 28 mW Variable, max
    32Ω

    Versions/Power Requirements
    US model  /  120V AC 60Hz
    Power Consumption:   15 W

    Very similar to the Sony CDP-222ESD and CDP-505ESD Compact Disc Players which additionally have digital output.

  • Peso neto
  • 5.3 kg / 11 lb 10.8 oz (11.674 lb)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service Manual CDP-222ESD/505ESD/910 dated 1987.6)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
