Compact Disc Player CDP-S39
Sony Corporation; Tokyo
- Pays
- Japon
- Fabricant / Marque
- Sony Corporation; Tokyo
- Année
- 1990 ?
- Catégorie
- Enrégistreur et/ou reproducteur son/video
- Radiomuseum.org ID
- 316289
- No. de transistors
- Semi-conducteurs présents
- Semi-conducteurs
- Principe général
- Amplification audio
- Gammes d'ondes
- - sans
- Particularités
- Lecteur CD et/ou graveur, MD, MOD (audio); Télécommande par HF ou fil
- Tension / type courant
- Alimentation Courant Alternatif (CA) / 110-120; 220-240 Volt
- Haut-parleur
- - Pour casque ou amplificateur BF
- Matière
- Boitier métallique
- De Radiomuseum.org
- Modèle: Compact Disc Player CDP-S39 - Sony Corporation; Tokyo
- Forme
- Appareil d'étagère
- Dimensions (LHP)
- 225 x 65 x 230 mm / 8.9 x 2.6 x 9.1 inch
- Remarques
-

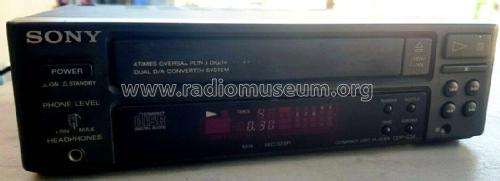

A mini sized stereo hi-fi compact disc player with remote control (RM-D195). Dual D/A Converter System, 4 Times Oversampling Digital Filter. RCA phono Line Out sockets, System Control input connector, voltage selector and a jack for headphones with volume control.
Specification Frequency response 5 Hz - 20 kHz (+0.5dB,-2.0dB) Signal to noise ratio More than 93 dB Dynamic range More than 88 dB Harmonic distortion Less than 0.05% (at 1 kHz) Channel separation More than 90 dB Outputs Line Out (Fixed)
(phono jacks)Output level 2 V (at 50 kΩ)
Load impedance over 10 kΩHeadphones
(stereo phone jack)Output level max. 1 mW
Load impedance 32 ΩVersions/Power requirements
E, Australia: / 110-120V or 220-240V AC 50/60 Hz adjustablePower consumption: 10 W
- Poids net
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Schémathèque (1)
- - - Manufacturers Literature (Service Manual CDP-S39 dated 1990.4)
- Auteur
- Modèle crée par Howard Craven. Voir les propositions de modification pour les contributeurs supplémentaires.
