FM Stereo / FM-AM Tuner ST-5150
Sony Corporation; Tokyo
- País
- Japon
- Fabricante / Marca
- Sony Corporation; Tokyo
- Año
- 1973–1976 ?
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 293264
- Numero de transistores
- Hay semiconductores.
- Semiconductores
- Principio principal
- Superheterodino en general; ZF/IF 455 or 468/10700 kHz
- Gama de ondas
- OM y FM
- Especialidades
- Hi-Fi equipment
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 120; 110; 127; 220; 240 Volt
- Altavoz
- - Este modelo usa amplificador externo de B.F.
- Material
- Madera
- de Radiomuseum.org
- Modelo: FM Stereo / FM-AM Tuner ST-5150 - Sony Corporation; Tokyo
- Forma
- Unidad para estanteria.
- Ancho, altura, profundidad
- 400 x 149 x 344 mm / 15.7 x 5.9 x 13.5 inch
- Anotaciones
-

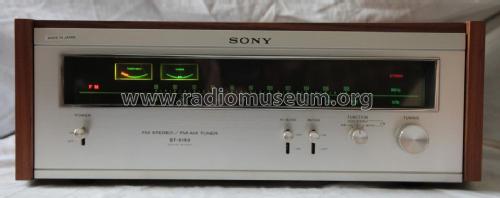

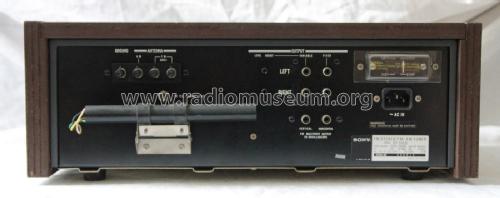

A hi-fi AM/FM stereo tuner with an analogue dial, housed in a wooden case. With Signal Strength and Tuning meters, rotary Tuning control, Stereo indicator lamp, rotary Function switch (AM, FM Auto Stereo, FM Mono) and switches for Hi-Blend and Muting. On the rear, an AM ferrite rod antenna, terminals for AM and FM antennae, RCA phono sockets for Fixed Line output and for Variable Line output (with output level adjusters), and for FM Multipath Vertical and Horizontal output.
Specification FM Tuner Section Frequency range 87.5 to 108MHz Intermediate frequency 10.7MHz Sensitivity 2.0µV (IHF)
1.6µV (S/N=30dB)S/N ratio 70dB Capture ratio 1.0dB Selectivity 70dB (IHF) Frequency response 20Hz - 15kHz ±1dB Separation 40dB at 400Hz Harmonic distortion Mono: 0.3%, IHF (400Hz 100% Mod)
Stereo: 0.5%, IHF (400Hz 100% Mod)AM Tuner Section Frequency range 530 - 1,605kHz Intermediate frequency 455kHz (USA, Canada, AEP and E Models)
468kHz (UK Model)Sensitivity 50dB/m built-in antenna, 30µV external antenna Harmonic distortion 0.6% (50mV/m) S/N ratio 50dB Outputs FIXED: 750mV, 10kΩ
VARIABLE: 0-2V, 1.8kΩ (at 100% Mod)
MULTIPATH:
VERTICAL 150mV, 10kΩ
HORIZONTAL 150mV, 100kΩVersions/Power requirements
USA, Canada Model / 120V AC 50/60Hz
AEP, UK, E Model / 110, 127, 220, 240V AC 50/60Hz with voltage selectorPower consumption: 15W (USA and Canada Model), 25W (AEP, UK and E Model)
