FM Stereo / FM-AM Tuner ST-20F - ST-20FB

Sony Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1979–1981
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 221937

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • PLL, Phase-locked loop; ZF/IF 459/10700 kHz
  • Gama de ondas
  • OM y FM
  • Especialidades
  • Hi-Fi equipment
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 120; 220; 240 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: FM Stereo / FM-AM Tuner ST-20F - ST-20FB - Sony Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 430 x 70 x 170 mm / 16.9 x 2.8 x 6.7 inch
  • Anotaciones

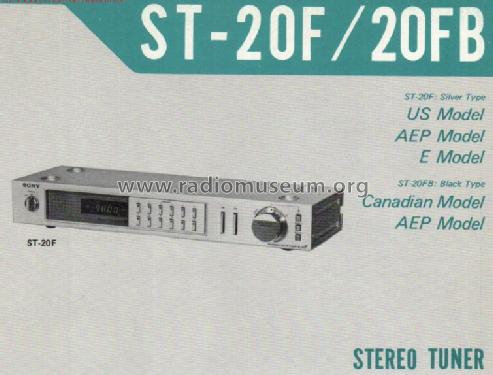

  • A hi-fi PLL Quartz Synthesizer AM/FM stereo tuner with a digital display, a component in the Sony Falcon Hi-Fi systems. The Sony ST-20F (US, AEP, E models) is housed in a silver metal case, the ST-20FB (Canadian, AEP models) in a black metal case. Memory (with backup battery) for 12 preset radio stations, automatic tuning, variable speed tuning (Fast, Slow, Single Step). With terminals for AM and FM antennae, line output cable fitted with phono plugs and a selector switch for AM frequency increment, 9kHz or 10kHz steps.

    Specification
    FM Section
    Frequency Range
      US, Canadian model
      E, AEP model    		 87.5 - 108MHz
    87.55 - 108MHz
    Antenna Terminals 300Ω balanced, 75Ω unbalanced
    Sensitivity at 50dB Quieting
     (75kHz deviation)    		 3.5µV, 16.1dBf (MONO)
    45µV, 38.3dBf (STEREO)
    Usable Sensitivity IHF 1.8µV, 10.3dBf
    DIN 1.3µV (S/N = 26dB, 40kHz deviation)
    S/N Ratio 75dB (MONO), 70dB (STEREO)
    Harmonic Distortion 0.1% (MONO) at 1kHz, 0.25% (STEREO) at 1kHz
    IM Distortion 0.1% (MONO), 0.25% (STEREO)
    Separation   45dB at 1kHz
    Frequency Response IHF 30Hz - 15kHz +0.5dB,-2.0dB
    DIN 40Hz - 12.5kHz +0.5dB,-1.0dB
    Alternate Channel Selectivity IHF 60dB (400kHz), DIN 55dB (300kHz)
    Capture Ratio  1.0dB
    AM Suppression Ratio 54dB
    Image Response Ratio 85dB
    Muting Threshold Approx. 5µV
    Output Level
      AEP model
      US, Canadian, E model    		 450mV, 4.7kΩ (1kHz, 40kHz deviation)
    450mV, 4.7kΩ (1kHz, 75kHz deviation)
    AM Section
    Frequency Range
      AEP model 531 - 1,602kHz
      US, Canadian, E model 525 - 1,605kHz (10kHz steps)
    531 - 1,602kHz (9kHz steps)
    Antennas External antenna terminal
    Attached antenna wire
    Usable Sensitivity 100µV (1,000kHz)
    S/N Ratio 52dB (5mV)
    Harmonic Distortion 0.3% (5mV, 400Hz)
    Selectivity 50dB (9kHz)
    Image Response Ratio 40dB (1,000kHz)

    Versions/Power requirements
    ST-20F US model / 120V AC 60Hz
    ST-20FB Canadian model / 120V AC 60Hz
    ST-20F or ST-20FB AEP models  / 220V AC 50Hz
    ST-20F E model / AC 120, 220, 240V AC 50/60Hz with votage selector

    Power consumption:  12 Watts

  • Peso neto
  • 2.9 kg / 6 lb 6.2 oz (6.388 lb)
  • Mencionado en
  • -- Original-techn. papers. (October 1979, No.1)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service manual ST-20F ST-20-FB dated 1979)
  • Documentación / Esquemas (2)
  • -- Original prospect or advert (1981 Sony Audio catalogue)
  • Autor
  • Modelo creado por un miembro de A. Ver en "Modificar Ficha" los participantes posteriores.
