STR-414L
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 114207

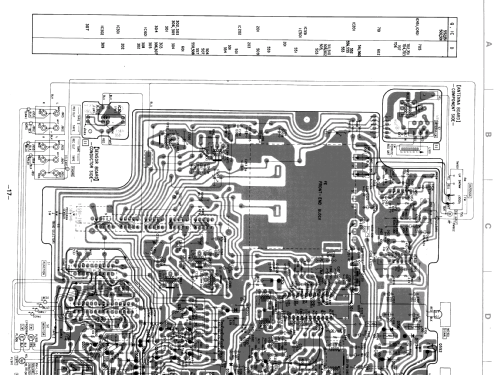

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

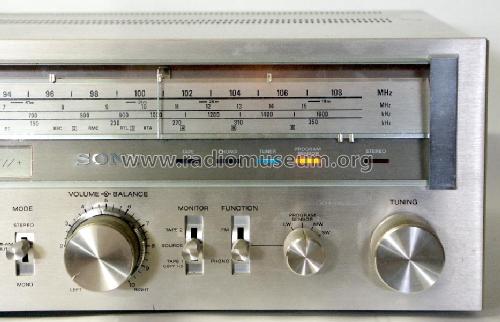

- Model: STR-414L - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 410 x 145 x 375 mm / 16.1 x 5.7 x 14.8 inch
- Notes
- ICs: 7
4-Band-Stereo-HiFi-Receiver mit 2× 45 Watt (Sinus) an 8 Ohm. Leistungsbandbreite 10–40000 Hz.
HiFi-Tuner, 5 program sensor presets on LW and FM, small metal sensors can be moved to correct frequencies with main tuning dial, when a pushbutton is pressed, in the program sensor modes the receiver is muted except when tuning indicator is above one of the preset marks.
- Net weight (2.2 lb = 1 kg)
- 9.1 kg / 20 lb 0.7 oz (20.044 lb)
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
