• Country
• Sweden

• Manufacturer / Brand
• Sound Radio; Stockholm

• Year
• 1955 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 357082

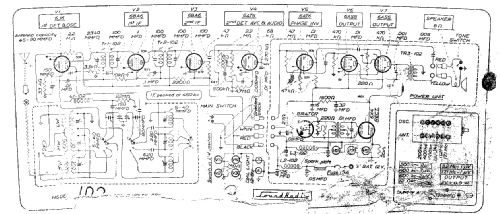

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6J6 6BA6 6BA6 6AT6 6AT6 6AS5 6AS5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto Radio 102 - Sound Radio; Stockholm

• Shape
• Chassis only or for «building in»

• Author
• Model page created by David Erali. See "Data change" for further contributors.

• Other Models

• Here you find 6 models, 4 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
