- Country
- Sweden
- Manufacturer / Brand
- Sound Radio; Stockholm
- Year
- 1949
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 197101
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

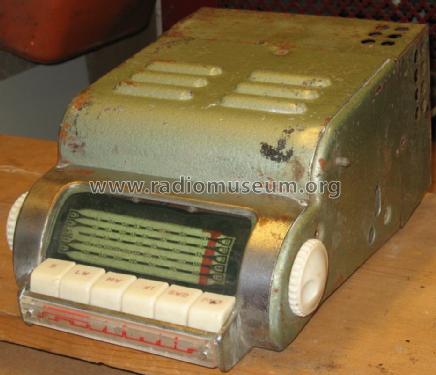

- Model: SR96 - Sound Radio; Stockholm
- Dimensions (WHD)
- 176 x 125 x 300 mm / 6.9 x 4.9 x 11.8 inch
- Notes
- Drei KW-bereiche: 19, 25 und 31 m.
- Net weight (2.2 lb = 1 kg)
- 6.7 kg / 14 lb 12.1 oz (14.758 lb)
- Author
- Model page created by Torbjörn Forsman. See "Data change" for further contributors.
