Sparton 110 AC Console
Sparks-Withington Co., (Sparton); Jackson, Michigan
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1926/1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226697

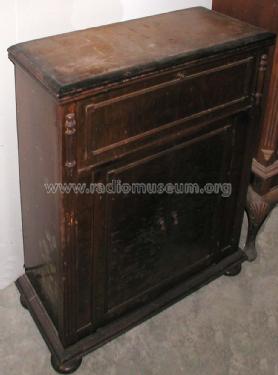

By courtesy of member Steve Geary.
By courtesy of member Steve Geary.
By courtesy of member Steve Geary.
- Number of Tubes
- 6
- Valves / Tubes
- C401 C401 C401 C401 unknown_Tube unknown_Tube
- Main principle
- TRF without regeneration
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-130 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sparton 110 AC Console - Sparks-Withington Co., Sparton
- Shape
- Console with any shape - in general
- Notes
-
The Sparton model 110 AC is probably Sparton's first AC radio. It is a battery radio adapted for AC. Sparton used non-standard Kellogg/McCullough 401 type tubes for which Sparton made their own version, The Cardon C-401. The Kellogg has heater connections at the top of the tube and the Cardon tubes have the heater pins on the side of the base. The model 110 AC (not to mixup with the later 110 Equasonne with quite a different circuit) was made in two versions: A console for $ 360 and a table cabinet model for $ 260. They have 5 receiving tubes plus a rectifier, two dial control.
See also the article here about different radio seasons.
- Price in first year of sale
- 360.00 $
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3 (page 117 Ad from "Saturday Evening Post" Nov.9, 1926)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
