Radiola HLL 220

• Country
• Sweden

• Manufacturer / Brand
• SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123649

• • Brand: Radiola

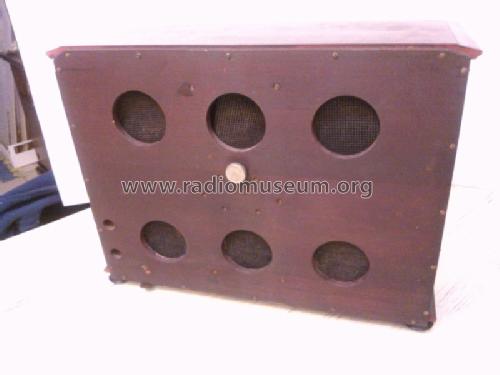

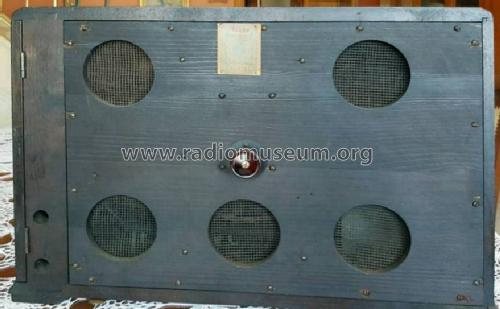

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

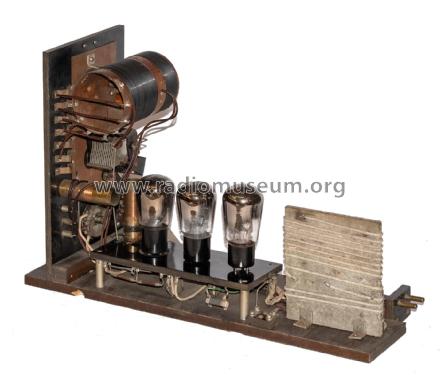

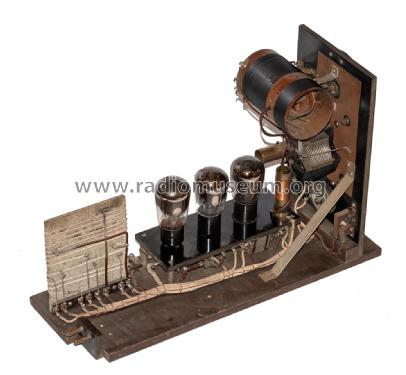

• Number of Tubes
• 3

• Valves / Tubes
• A425 A425 Radiola-F or B409

• Main principle
• TRF with regeneration

• Wave bands
• Wave Bands given in the notes.

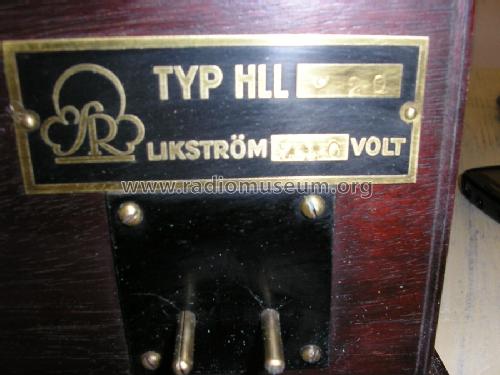

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

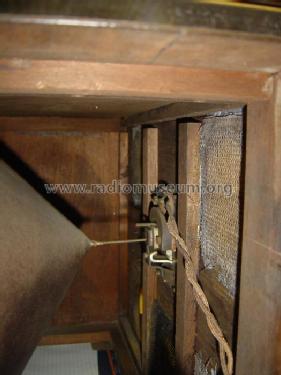

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola HLL 220 - SR, Svenska Radioaktiebolaget

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• 1 regenerative detector + 2 AF, built-in loudspeaker.
