• Country
• Sweden

• Manufacturer / Brand
• SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105370

• • Brand: Radiola

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

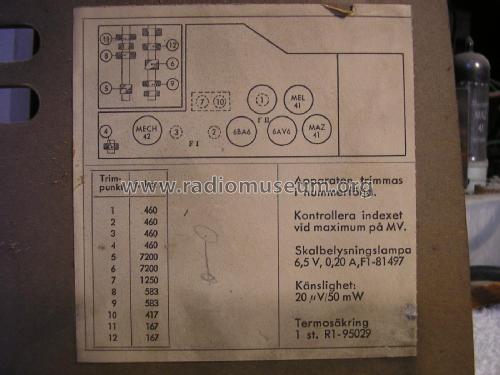

• ECH42 6BA6 6AV6 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

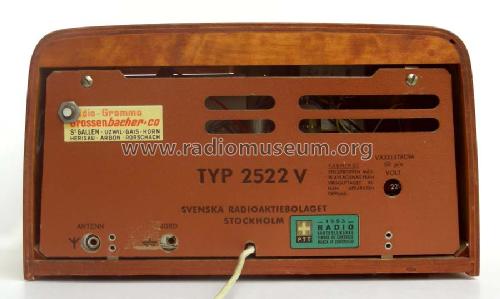

• Model: Radiola Sonett 2522V - SR, Svenska Radioaktiebolaget

• Dimensions (WHD)
• 315 x 179 x 134 mm / 12.4 x 7 x 5.3 inch

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Olausson. See "Data change" for further contributors.
