• Country
• Sweden

• Manufacturer / Brand
• SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104028

• • Brand: Radiola

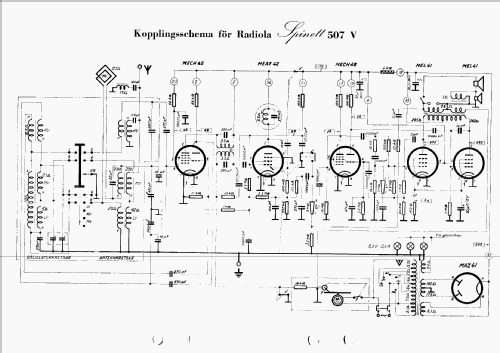

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 ECH42 EL41 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 140; 155; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola Spinett 507V - SR, Svenska Radioaktiebolaget

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 500 x 600 x 335 mm / 19.7 x 23.6 x 13.2 inch

• Net weight (2.2 lb = 1 kg)
• 14.1 kg / 31 lb 0.9 oz (31.057 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Olausson. See "Data change" for further contributors.
