• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339861

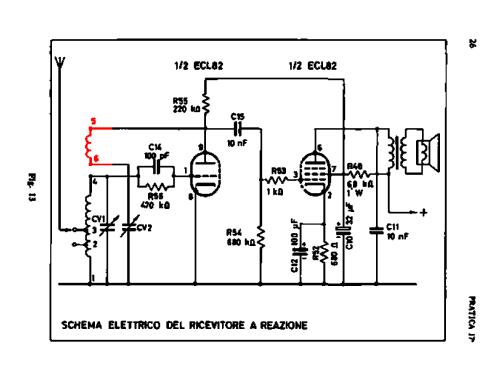

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL82

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 1° Ricevitore sperimentale [con reazione] - SRE - Scuola Radio Elettra,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 200 x 180 x 120 mm / 7.9 x 7.1 x 4.7 inch

• Notes

• Radioricevitore sperimentale per Onde Medie a due stadi: rivelazione e amplificazione di potenza. Altoparlante esterno. L'alimentatore utilizza un diodo al selenio.

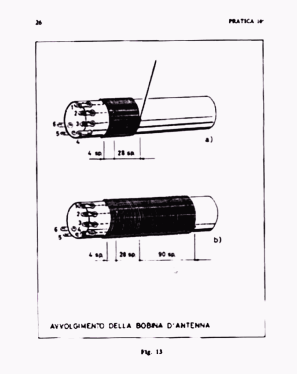

  Con feedback bobina.

  Vedi anche modello 1° Ricevitore sperimentale senza feedback bobina.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Adrian Riesen. See "Data change" for further contributors.
