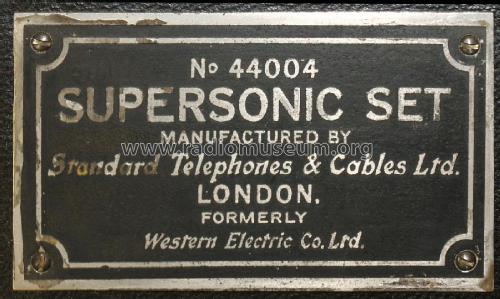

Supersonic Set 44004

Standard Telephones and Cables Ltd. (STC); London, Foots Cray

Data
Forum
Pictures
Collections

  • Year
  • 1926 ?
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 279453
    • Brand: Micromesh tubes

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 50 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 4 & 45 & 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Supersonic Set 44004 - Standard Telephones and Cables
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 510 x 305 x 170 mm / 20.1 x 12 x 6.7 inch
  • Notes

  • An all-triode superhet using WECO valves in a series/parallel filament configuration and possibly the domestic version of the 4004 which was used extensively in the diplomatic services for Embassy communications. The hole in the front housed a dual range voltmeter used to check the two HT batteries. Two special oscillator coils were provided, one covering 300-500 m and the other, 500-1000 m. All other RF coils are the standard 2-pin plug-in "What are the Wild Waves Saying" units covering the 200-1000 m using a total of 12 coils of six different values. The chassis is constructed of solid copper, bright nickel plated and is divided into 6 sections, the main ones being labelled as AE Tuner, O.S.C., Wavetrap, IF Amp and AF amp. The 215A valve filaments (1 V) are connected in a series/parallel arrangement to enable a 4 V storage battery to be used, this being required by the PA4 made by STC and using the 4-pin UV base.

    See also the similar Western Electric 4004 model.
