• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70861

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EF41 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

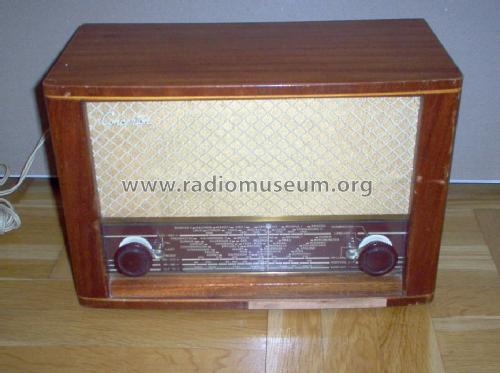

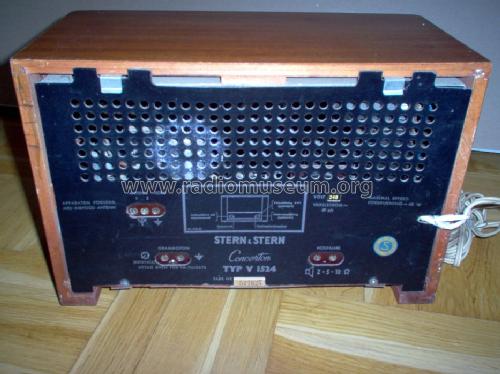

• Model: Concerton V1524 - Stern & Stern Concerton /

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 370 x 250 x 190 mm / 14.6 x 9.8 x 7.5 inch

• Notes
• Dial lamp: 8045D 6.3V 0.32A

• Price in first year of sale
• 280.00 SEK

• Author
• Model page created by Jörgen Svensson. See "Data change" for further contributors.

• Other Models

• Here you find 395 models, 224 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
